Route requests across providers

Modern AI applications rarely depend on a single provider for long: a primary commercial model handles most of the traffic, a second is held in reserve in case the first one has a bad afternoon, and a cheaper or self-hosted option absorbs traffic where quality requirements allow. This is the foundational developer walkthrough, covering the request path end-to-end: how an API key is created in the Console, how a routing configuration is attached to that key so that more than one backend is available, how a request is sent to the gateway, and how the resulting traffic is verified in Request Logs. Once complete, the more specific routing patterns (fallback chains, traffic splitting, advanced rules, and BYOK) become incremental additions on top of the same setup.

---

Persona: Developer working in the Agent Router Console.

Estimated time: 15--20 minutes for the first run, including time to copy values between the Console and a terminal.

Outcomes

By the end of this guide:

• A working API key exists in the Console, stored securely outside of the platform.
• A routing configuration is attached to that key, referencing at least one, and ideally two, enabled models.
• A request sent through the gateway returns a successful response from one of the configured backends.
• The request is visible in Request Logs, with the resolved model, latency, token counts, and cost recorded.

Prerequisites

This guide assumes that a platform operator has already provisioned the models and providers that requests will be routed to. The operator-facing companion to this work (enabling models, configuring providers, and verifying provider connectivity) is covered by the Provision Models and Providers guide in Guides for Platform Operators. If models are not yet enabled in the Admin Dashboard, that step has to happen first; the Console can only build routing configurations on top of what the platform has been told to expose.

In summary, before starting:

• The Admin Dashboard shows at least one enabled model with a healthy provider connection.
• Developer access to the Agent Router Console is in place.
• A terminal with curl (or a Python environment with the openai package) is available for the request step.

The Console and the proxy endpoint

The Agent Router Console is the developer-facing application within the platform. It provides a single interface for routing requests across the supported models, managing API keys, and monitoring usage and costs. Access is through a deployment-specific URL; sign-in is by email and password or by corporate SSO.

After sign-in, the landing page is the Dashboard. It surfaces the proxy endpoint, recent request activity, and shortcuts to common actions:

• The proxy endpoint is displayed at the top of the Dashboard and on the API Keys page, and again after a key or routing configuration is created. It is the OpenAI- and Anthropic-compatible base URL that requests are sent to, the same URL described as the gateway URL elsewhere in this guide. It follows the OpenAI API format and ends in /v1. Any tool, SDK, or HTTP client that speaks the OpenAI Chat Completions or Anthropic Messages API can connect to it, authenticating with an API key passed in the Authorization: Bearer header. The copy icon next to the URL copies it to the clipboard for use as the base_url in a client configuration.
• Summary metrics cover the selected period: Total Requests across all keys, and Total Spend (shown only when billing is enabled). A time-range selector (last 24 hours, last 7 days, or last 30 days) adjusts the window.
• An API key summary card per key shows recent activity at a glance.
• Quick actions jump directly to API key creation or to the Playground.

The concepts that recur throughout this guide are summarized below:

Concept	Description
Proxy endpoint	The OpenAI- and Anthropic-compatible URL that routes requests to the correct provider.
API key	A credential prefixed with sk- that authenticates requests to the proxy endpoint.
Routing configuration	Per-key settings for fallback policies and traffic splitting across models.
MCP profile	A bundled set of Model Context Protocol (MCP) servers exposed as a single URL for tool-use clients.

Step 1: create an API key in the Console

API keys are the credential applications present when they call the gateway. Each key is associated with a routing configuration, so creating the key comes first; the routing rules are attached to it in the next step.

1. Sign in to the Agent Router Console.
2. Open Settings → API Keys from the sidebar.
3. Click Create API Key.
4. Enter a descriptive name. Names are surfaced in Request Logs and usage analytics, so a phrase tied to the calling application or environment (checkout-service-prod, rag-experiment-staging) is more useful at audit time than a generic value.
5. Click Create and copy the generated key immediately. Keys are prefixed with sk- (for example, sk-abc123def456...).

caution

The full key string is displayed only once. It cannot be retrieved later from the Console; if it is lost, the key has to be revoked and a new one issued. Store it in a secrets manager, an environment variable, or whatever credential store the application stack already uses, not in source control.

What the API Keys page shows

Once created, each key is listed on the API Keys page with its own usage statistics, so cost and volume can be tracked per integration, environment, or team member:

Column	Detail
Name	The descriptive label entered at creation; also surfaced in Request Logs and usage analytics.
Total requests	The number of requests made with the key.
Token counts	Input and output tokens consumed by the key.
Total spend	The accumulated cost attributed to the key.
Actions	Configure routing, set rate limits, or revoke the key. Revocation is immediate, and any further requests with the key return an authentication error.

Each key can also carry a per-hour rate limit. Rate limits are configured per key from the key's Configure action: the Rate Limit section is enabled with a toggle, after which three independent token-budget sliders become available. Each can be enabled separately and set with the slider or by typing a value:

• Total tokens: maximum combined input and output tokens per hour.
• Input tokens: maximum prompt tokens per hour.
• Output tokens: maximum completion tokens per hour.

Limits are evaluated on a rolling one-hour window that counts the current request together with all tokens consumed by the key in the preceding hour. Only enabled limits are enforced, and each is checked independently; a request is rejected if it would exceed any active limit. Requests that exceed a limit receive a 429 Too Many Requests response.

Revoke a key

A key is revoked from its row on the API Keys page using the revoke action; the action requires confirmation. Revocation is immediate: in-flight and future requests presenting the revoked key return an authentication error. A revoked key cannot be restored; a replacement key has to be issued.

Key hygiene

• Descriptive names: name keys after their purpose (ci-pipeline, staging-app, john-local) so usage can be identified later.
• One key per integration: a separate key per application, environment, or developer keeps usage tracking isolated.
• Rotate regularly: keys are periodically revoked and replaced, especially for production systems.
• Never commit keys to source control: environment variables or a secrets manager are used instead.

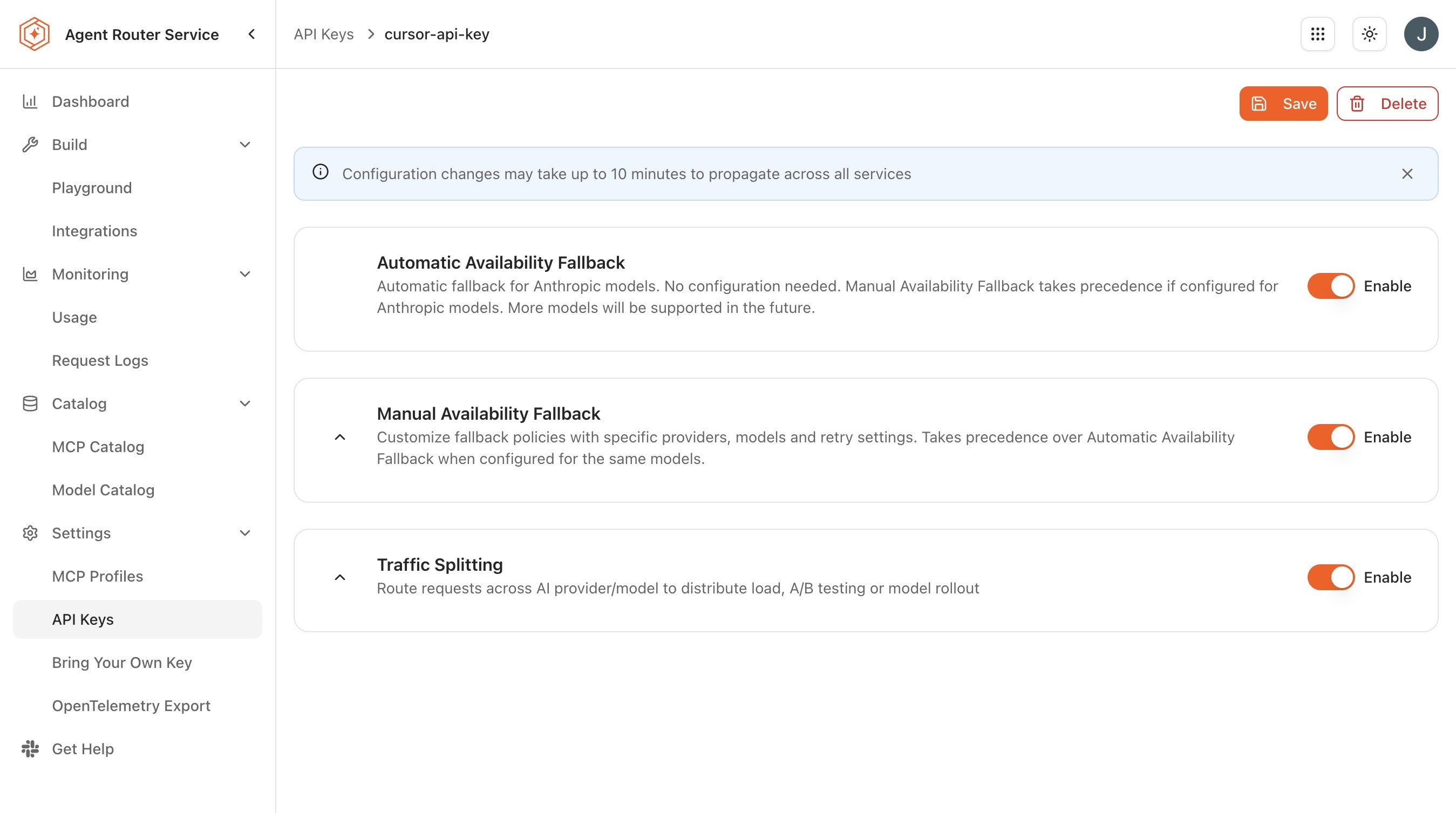

Step 2: configure routing across providers

Routing rules are attached to individual API keys: the same Console account can hold one key with a single-backend configuration and another key with a multi-backend chain, and the choice between them is made simply by which key the calling application presents. This per-key separation is useful for keeping experimental routing arrangements off the path of production traffic.

1. From the API Keys page, click the key that was just created to open its detail page.

2. Scroll to the Routing Configuration section.

3. Click Configure or Add Rule.

4. Select a routing strategy. For a first pass, Fallback Policy is the simplest choice, because it works equivalently with one backend or several:

   Strategy	Behaviour
   Fallback Policy	Backends are tried in priority order; the gateway walks to the next backend only when the previous one fails.
   Traffic Split	Backends share traffic by weight, on every request. Useful for evaluation and cost management.
   Advanced Routing Rules	Routing decisions consider request attributes such as the model field, custom headers, or other signals.

5. Add the primary model as the first backend in the chain (priority 0 in a fallback policy, or the first weighted entry in a traffic split). The model picker draws from the Model Catalog (Catalog → Model Catalog), which lists every enabled model with the detail needed to choose one:

   Column	Detail
   Model name	The identifier used in API requests (for example, gpt-4o, claude-sonnet-4-20250514).
   Provider	The upstream provider hosting the model.
   Context window	The maximum number of tokens the model accepts in a single request.
   Pricing	Cost per input token and per output token.
   Status	Whether the model is enabled or disabled for the organization.

   The catalog spans 200+ models from providers including OpenAI, Anthropic, Google, Azure, Mistral, Cohere, Together, and Perplexity, sorted newest first by default. A search bar filters by name in real time, and the list can be narrowed by one or more providers and by status (enabled or disabled). A Group Snapshots toggle collapses dated model versions under their parent model for a cleaner view, or expands them to show every individual version. Selecting a model opens a detail page with its full name and provider, context window (input and output limits), pricing per million input and output tokens, supported capabilities (chat completions, function calling, vision, and others), and current status.

6. Optionally add a second backend from a different provider, for example, a Claude model behind a GPT model, or vice versa. This is what turns the configuration from "send everything to one provider" into "route across providers". Even with only one backend configured, the surrounding mechanics are identical; adding a second one later does not require any application change.

7. Save the configuration.

8. Confirm that the Active toggle on the routing configuration is on. An inactive configuration is saved but not enforced; requests bypass it and go directly to whatever model the calling code specifies.

Routing configuration reference

A few constraints apply to every routing configuration, regardless of strategy:

• Per-key scope: Rules are attached to one API key. A test key can run an experimental configuration while a production key holds a stable one.
• Active/inactive toggle: An inactive configuration is retained but not enforced; toggling it back to active restores the rules without reconfiguring them.
• Model availability: Every model referenced in a rule must be enabled in the model catalog. If a model is later disabled by an administrator, rules that reference it may stop behaving as expected.

The defaults applied by the Console (priority 0 for the first model, weight 1 per priority level) are the right starting point for the cases covered in this guide. The deeper mechanics of each strategy (chain ordering, weight tuning, and attribute-based dispatch) are covered in the dedicated Improve Resilience with Fallbacks, Reduce Cost with Traffic Splitting, and Apply Advanced Routing Rules guides.

Step 3: send a request through the gateway

The gateway exposes an OpenAI-compatible endpoint at /v1/chat/completions. The request shape is the standard OpenAI Chat Completions payload, and the API key from Step 1 is presented as a bearer token. The same endpoint serves every backend the platform supports, regardless of which underlying provider ultimately handles the request.

The exact gateway URL is environment-specific and is supplied during installation. The examples below assume YOUR_GATEWAY_URL is substituted with that value, and YOUR_API_KEY with the key copied in Step 1.

Using curl

curl https://YOUR_GATEWAY_URL/v1/chat/completions \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "gpt-4o",
    "messages": [{"role": "user", "content": "Explain the concept of AI routing in one sentence."}]
  }'

Using Python

from openai import OpenAI

client = OpenAI(
    base_url="https://YOUR_GATEWAY_URL/v1",
    api_key="YOUR_API_KEY",
)

response = client.chat.completions.create(
    model="gpt-4o",
    messages=[{"role": "user", "content": "Explain the concept of AI routing in one sentence."}],
)

print(response.choices[0].message.content)

A successful call returns a response in the same shape the calling code would expect from OpenAI directly; which model actually produced the response is determined by the routing configuration, not by the value of the model field.

note

The model field in the request is treated as a hint rather than a strict instruction once routing rules are in place. If the configured routing strategy resolves to a different backend (for example, a fallback chain has fallen through to its secondary model), the gateway uses that backend regardless of what the application sent. The exact resolution rules are documented in Gateway behavior under Reference.

Step 4: verify the route in request logs

Sending a request is not the same as confirming the routing behaved as expected. Request Logs is the developer-facing record of every request that flowed through the gateway under a given API key, with enough detail to settle questions about which backend served the request and how it performed.

1. In the Console, open Monitoring → Request Logs.

2. Locate the test request, the most recent entry under the API key created in Step 1.

3. Expand the row to view the detail panel.

4. Confirm the following fields are populated and consistent with the routing configuration:

   Field	What to check
   Resolved model	Matches the backend the gateway actually used, not necessarily the value sent in the model field.
   Provider	Matches the upstream provider for the resolved model.
   Token counts	Input and output tokens are present and non-zero.
   Latency	The end-to-end time the gateway observed for the call.
   Cost	The computed cost based on the resolved model and token usage.

If the resolved model differs from the primary backend in the routing configuration, the chain has fallen through, either because the primary backend returned an error or because the configured strategy distributes traffic by weight. Both are expected behaviours; the deeper failure-mode handling is covered in Improve Resilience with Fallbacks.

Request Logs can be filtered by API key, time range, model, or response status, and each row expands to a detail panel showing the full request and response content. The aggregated view (spend and volume broken down by model, provider, and key) is covered in Monitor Traffic and Usage.

What to do next

The foundational route is in place. The remaining developer guides each add a specific behaviour on top of it without reworking what has already been built:

• Improve resilience with fallbacks: formalise the multi-provider chain into an explicit ordered fallback policy and tune the failover behaviour.
• Reduce cost with traffic splitting: distribute requests by weight rather than priority.
• Apply advanced routing rules: dispatch requests based on attributes of the request itself.
• Use your own provider credentials: introduce BYOK credentials into the routing chain.
• Monitor traffic and usage: expand on Step 4 with usage analytics and cost reporting across API keys.

Each of those guides assumes the setup completed here is already in place.

---
